Vertical orientation

This illustrates the effect of orientation=’vertical’.

from matplotlib import pyplot as plt
from upsetplot import generate_counts, plot

example = generate_counts()
plot(example, orientation='vertical')
plt.suptitle('A vertical plot')
plt.show()

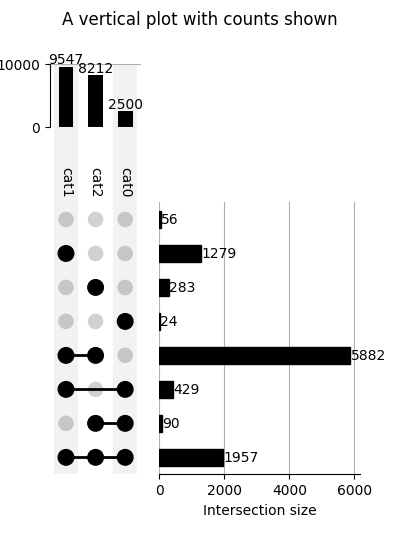

plot(example, orientation='vertical', show_counts='{:d}')
plt.suptitle('A vertical plot with counts shown')
plt.show()

plot(example, orientation='vertical', show_counts='{:d}',
     show_percentages=True)
plt.suptitle('With counts and percentages shown')
plt.show()
